ASME B16.47 RF FF RTJ Sealing Surface Weld Neck Pipe Flanges ASTM B564 UNS N08011



1. Specifications :

Standards:ASTM, ASME
Designation:B 564, SB 564



StandardsIncoloy 800HT
UNSN08810
Werkstoff Nr.1.4958



2. ASTM B564 Incoloy 800HT Flanges Chemical Composition

Incoloy800800H800HT
Ni30-3530-3530-35
Fe39.5 min39.5 min39.5 min
Cr19-2319-2319-23
Cu0.75 max0.75 max0.75 max
Ti0.15-0.600.15-0.600.25-0.60
Al0.15-0.600.15-0.600.85-1.20
C0.1 max0.05-0.10.06-0.1
Mn1.5 max1.5 max1.5 max
S0.015 max0.015 max0.015 max
Si1.0 max1.0 max1.0 max



3. Mechanical & Physical Properties

Density7.94 g/cm3
Melting Point1385 °C (2525 °F)
Tensile StrengthPsi – 75,000 , MPa –520
Yield Strength (0.2%Offset)Psi – 30,000 , MPa – 205
Elongation30 %



4. Types Of ASTM B564 Incoloy 800HT Flanges

ASTM B564 Incoloy 800HT Forged FlangesASTM B564 Incoloy 800HT High Hub Blinds Flanges
ASTM B564 Incoloy 800HT Blind FlangesASTM B564 Incoloy 800HT Spectacle Blinds Flanges
ASTM B564 Incoloy 800HT Reducing FlangesASTM B564 Incoloy 800HT Loose Flanges
ASTM B564 Incoloy 800HT Orifice FlangesASTM B564 Incoloy 800HT RTJ Flanges
ASTM B564 Incoloy 800HT Socket Weld FlangesASTM B564 Incoloy 800HT Screwed Flanges
ASTM B564 Incoloy 800HT Slip On FlangesASTM B564 Incoloy 800HT Weld Neck Flanges
ASTM B564 Incoloy 800HT Flat FlangesASTM B564 Incoloy 800HT Flange Facing Type & Finish
ASTM B564 Incoloy 800HT Lapped Joint FlangesASTM B564 Incoloy 800HT SORF Flanges
ASTM B564 Incoloy 800HT SWRF FlangesASTM B564 Incoloy 800HT Groove & Tongue Flanges
ASTM B564 Incoloy 800HT Square FlangesASTM B564 Incoloy 800HT Long Neck Weld Flanges
ASTM B564 Incoloy 800HT Threaded FlangesASTM B564 Incoloy 800HT Spades Ring Spacers Flanges
ASTM B564 Incoloy 800HT Weld Neck Flanges Series A or BASTM B564 Incoloy 800HT Ring Type Joint Flanges
ASTM B564 Incoloy 800HT WNRF FlangesASTM B564 Incoloy 800HT Weldo / Nipo Flanges
ASTM B564 Incoloy 800HT Expander Flanges



5. Weld Neck Flange Dimensions & Approximate Masses



Series A

ANSI Class 150, B16.47 Series A (in)

ANSI Class 300, B16.47 Series A (in)

ANSI Class 400, B16.47 Series A (in)

ANSI Class 600, B16.47 Series A (in)

ASME B16.47 Weld Neck Pipe Flanges ASTM B564 UNS N08011 RF FF RTJ Sealing Surface

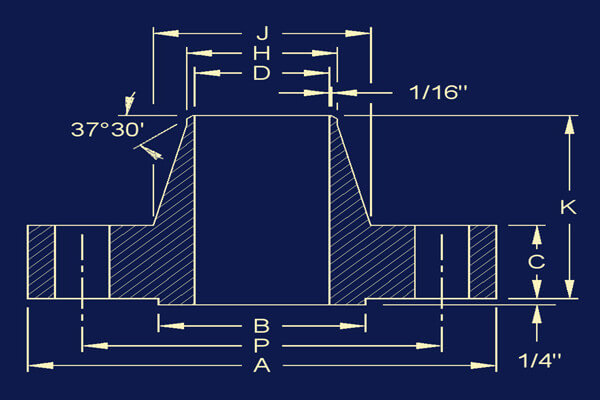

Dimensions Weld Neck & Blind flanges ASME B16.47 Series A

Pressure Class
150 | 300 | 400 | 600 | 900

Pressure Class 150 / 26 inch
ODDB
(WNF)
B
(BLF)
HA
660.487066.7
68.3
66.7
68.3
119
120.6
676
GKLNo of
Bolts
Stud Bolt
Dia x L
749806.434.9241.1/4222

26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 | 42 | 44 | 46 | 48 | 50 | 52 | 54 | 56 | 58 | 60



ASME B16.47 Weld Neck Pipe Flanges ASTM B564 UNS N08011 RF FF RTJ Sealing Surface

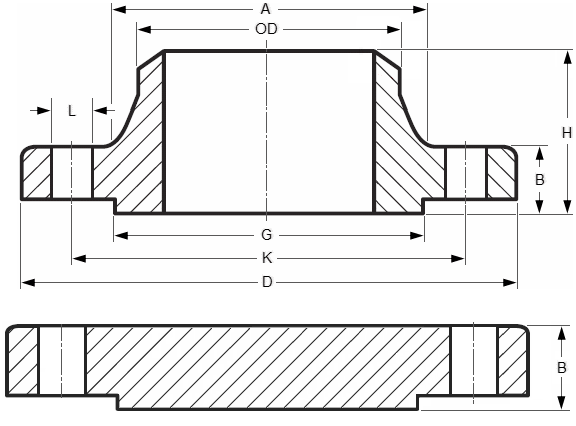

Indications:

OD = Diameter at Weld Bevel

D = Overall Diameter of Flange

B (WNF) = Minimum Thickness of Welding Neck Flange

B (BLF) = Minimum Thickness of Blind Flange

H = Length thru Hub

A = Diameter at Base of Hub

G = Outside Diameter of Raised Face

K = Bolt Circle Diameter

L = Diameter of Bolt Holes

ASME B16.47 Weld Neck Pipe Flanges ASTM B564 UNS N08011 RF FF RTJ Sealing Surface
