Inconel 625 1/2" - 24" Weld Neck Pipe Flanges Alloy 625 Forged Steel ASTM SB564

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price
You may also be intersted in
astm alloy 20hastelloy b2

Contact us

Bo Yue Industrial Shanghai Co.LTD
[China]

Address
No.2434,3rd floor,Building 469 Fengjin Road,Fengxian District,China. Web:http://www.steelpipeandpipe Shanghai Shanghai
Phone
86-147-35511965
Contact name
David

Quick Information

  • Brand Name: BOYUE
  • Place of Origin: China
  • Model Number : BOYUE00005
  • :

Description

Inconel 625 1/2" - 24" Weld Neck Alloy 625 Pipe Flanges Forged Steel ASTM SB564



1. 625 Inconel Flanges Equivalent Grades

Flange Types Available: Blind Flanges, Lap Joint Flanges, Slip On Flanges, Socket Weld Flanges, Threaded Flanges, Weld Neck Flanges


STANDARDWERKSTOFF NR.UNSJISBSGOSTAFNORENOR
Inconel 6252.4851N06601NCF 601NA 49XH60BTNC23FeANiCr23FeЭИ868




2. Inconel 625 Industrial Flanges Specification :

Size : ½” to 36″

Specifications : ASTM B 564 / ASME SB 564

Standards : ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc.

Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Pressure Ratings : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

3. Inconel flanges, inconel 625 flange, inconel 625 blind plate flanges, alloy 625 raised face blind flanges, 625 alloy lap joint flanges, inconel 625 slip on plate flanges, alloy 625 raised face socket weld flanges, alloy 625 raised face threaded flanges, 625 inconel raised face weld neck flanges, 625 inconel raised face slip-on flanges, alloy 625 industrial pipe flanges, inconel 625 flanges specifications, alloy 625 flange price list, inconel 625 threaded pipe flange, inconel 625 flange price, inconel 625 flange dimensions, inconel 625 pn16 flange dimensions, alloy 625 flange class 150, inconel alloy 625 flanges dimensions, alloy 625 forged flanges manufacturer.



4. Mechanical & Physical Properties



Density8.4 g/cm3
Melting Point1350 °C (2460 °F)
Tensile StrengthPsi – 135,000 , MPa –930
Yield Strength (0.2%Offset)Psi – 75,000 , MPa – 517
Elongation42.5 %



5. Chemical Composition (%):

NickelChromiumIronMolybdenumNiobium+TantalumCobalt*Manganese
58.0 min20.0 to 23.05.0 max8.0 to 10.03.15 to 4.151.0 max0.50 max
SiliconCarbonTitaniumAluminumPhosphorusSulfur
0.50 max0.40 max0.40 max0.10 max0.015 max0.015 max



6. Countries we have exported our products to:

Slovakia, Malaysia, Kenya, Morocco, Ecuador, Japan, Norway, Mongolia, Yemen, Poland, Puerto Rico, Belgium, Estonia, Tibet, Hong Kong, United Kingdom, Chile, South Africa, Sweden, Nigeria, Colombia, Iran, Germany, Bolivia, Bangladesh, France, Belarus, UAE, Brazil, Australia, Indonesia, Mexico, India, Ukraine, Gabon, Finland, Trinidad & Tobago,Tunisia, Bulgaria, Oman, Venezuela, Croatia, Pakistan, Serbia, Saudi Arabia, Kazakhstan, Lithuania, Macau, Vietnam, Nepal, Lebanon, Angola, Taiwan, Bhutan, Philippines, Ghana, Namibia, Denmark, Zimbabwe, Italy, United States, Gambia, KSA, Nigeria, Algeria, Singapore, Chile, Hungary, Mexico, Poland, Jordan, Romania, Portugal, Iraq, Canada, Bahrain, Spain, Afghanistan, Kuwait, Iran, Czech Republic, Russia, Ireland, Israel, Turkey, Azerbaijan, USA, Qatar, Costa Rica, Switzerland, Egypt, Netherlands, South Korea, United Arab Emirates, Thailand, Peru, China, New Zealand, Sri Lanka, Greece, Austria, Libya, Argentina



7. Applications Industry:

Pharmaceutical Equipment

Chemical Equipment

Sea Water Equipment

Heat Exchangers

Condensers

Pulp and Paper Industry

Off-Shore Oil Drilling Companies

Power Generation

Petrochemicals

Gas Processing

Specialty Chemicals

Pharmaceuticals



8. Testings (Destructive, Non Destructive):

*Positive Material Identification - PMI Testing*Hydrostatic Test
*Chemical Analysis - Spectro Analysis*Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
*Mechanical Testing Such as Tensile, Elongation*Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
*Micro Test*Radiography Test
*Macro Test*Dye Penetrant Test (DP Test)
*Hardness Test*Ultra Sonic Test (UT)
*Pitting Resistance Test*Eddy Current Testing
*Intergranular Corrosion (IGC) Test*Impact Test
*Flaring Test*Bend Test
*Flattening Test

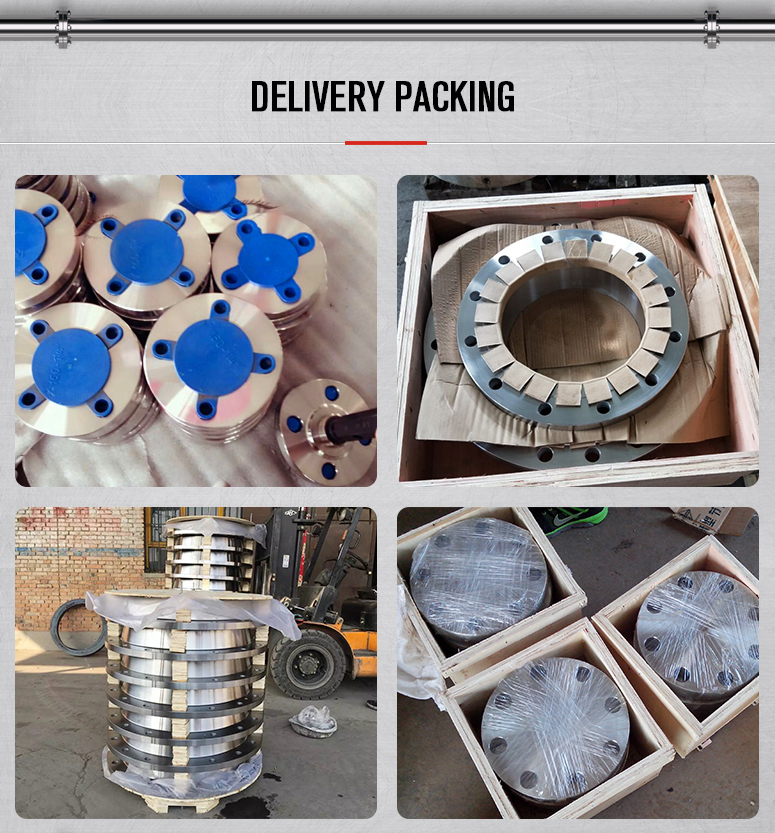

9. Packing:

Inconel 625 1/2" - 24" Weld Neck Pipe Flanges Alloy 625 Forged Steel ASTM SB564

#Shrink-wrapped

#Wooden Boxes

#Wooden Pallets

#Wooden Crates

#Carton boxes

Marking:

All our products will have complete marking details which are co-related to the test certificates we supply.



Product Attribute



Place of OriginChinaBrand NameBOYUE
StandardANSI, ISO, ASME, DIN, ASTMTypeWeld Neck Pipe Flanges
ModelNumberAlloy 600Thickness#150,#300,#600,.#900,#1500,#2500
PackingPly-Wood CasesPayment30%TT+70% Balance



Supply Ability:40000Pieces / per Month

Packaging & Delivery

Packaging Details:Generally plywooden case or following customer's requirement.

Port:Shanghai/Tianjin



Commerce Clause



Minimum Order Quantity:1pcs
Price:Depending on quantity
Payment Terms:T/T or Western Union or LC
Supply Ability:40000pcs per month
Delivery Time:10-100 days depending on quantity
Packaging Details:PLY-WOODEN CASE OR PALLET



Inconel 625 1/2" - 24" Weld Neck Pipe Flanges Alloy 625 Forged Steel ASTM SB564



Why Choose Us



1. One-Stop Service,One Single Source.

2. No MOQ.

3. Best quality,competitive price

4. Fast Reply.

5. On-Time Delivery

6. Professional sales and technical team .





Price

  • Delivery Port : SHANGHAI PORT

Packaging & Delivery

  • Packing :WOODEN PACKING
  • Delivery Lead Time : 5
  • Supply Ability : 40000/DAY
